F-16 Wing Overhaul
ES3 is qualified on F-16 repairs for USAF and foreign militaries

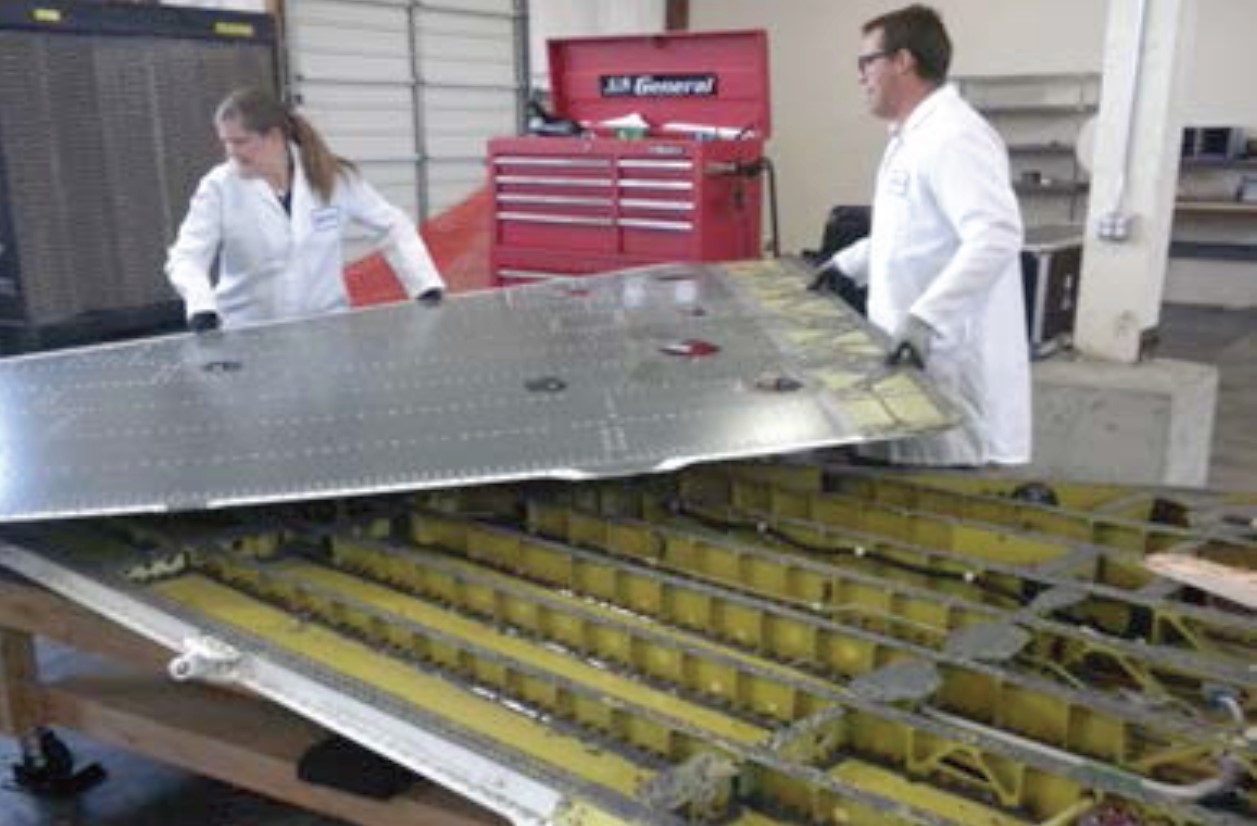

ES3 provides F-16 wing overhauls in which we remove upper and/or lower wing skins, perform structural integrity inspections and repairs, clean, re-skin. and re-seal the wings. ES3 staff includes certified wing overhaul technicians and production engineers with hundreds of completed wing overhauls under their belts. ES3’s technical lead for F-16 repairs is Rob McCowin, former US Air Force F-16 Engineer and Manager of USAF’s F-16 Airframe Structural Integrity Program (ASIP).
![](https://www.es3inc.com/wp-content/uploads/2019/10/ES3-f16wingtech1.jpg)
![](https://www.es3inc.com/wp-content/uploads/2019/10/ES3-f16wingtech2sm.jpg)
At our 120,000 square foot overhaul facility in Clearfield Utah, ES3 has the necessary tools and fixtures for AS9100 controlled and USAF aircraft validated wing and other structural overhauls. ES3’s in-house tools, fixtures, and capabilities includes:
- Milling tool and fixture to ensure matchup of overhauled wing with aircraft.
- Match drill fixture to ensure proper hole drilling of new skins.
- Non-destructive Inspection (NDI) process documents and worksheets
- Configuration controlled over
![](https://www.es3inc.com/wp-content/uploads/2019/08/Chris-Dickson-f16wingtechssm-1024x673.jpg)
In addition to F-16 Wing Overhauls, ES3 also provides the following other F-16 repairs with ES3 Field Service Teams:
- 341 bulkhead repair
- Horizontal box beam repair
- Carry through bulkhead radius repair
- Canopy seal longeron doubler installation
- Carry through bulkhead bathtub installation
For more information please contact Ed.Moffett@es3inc.com, 801-928-2745 or Rob.McCowin@es3inc.com, 801-928-2714.
